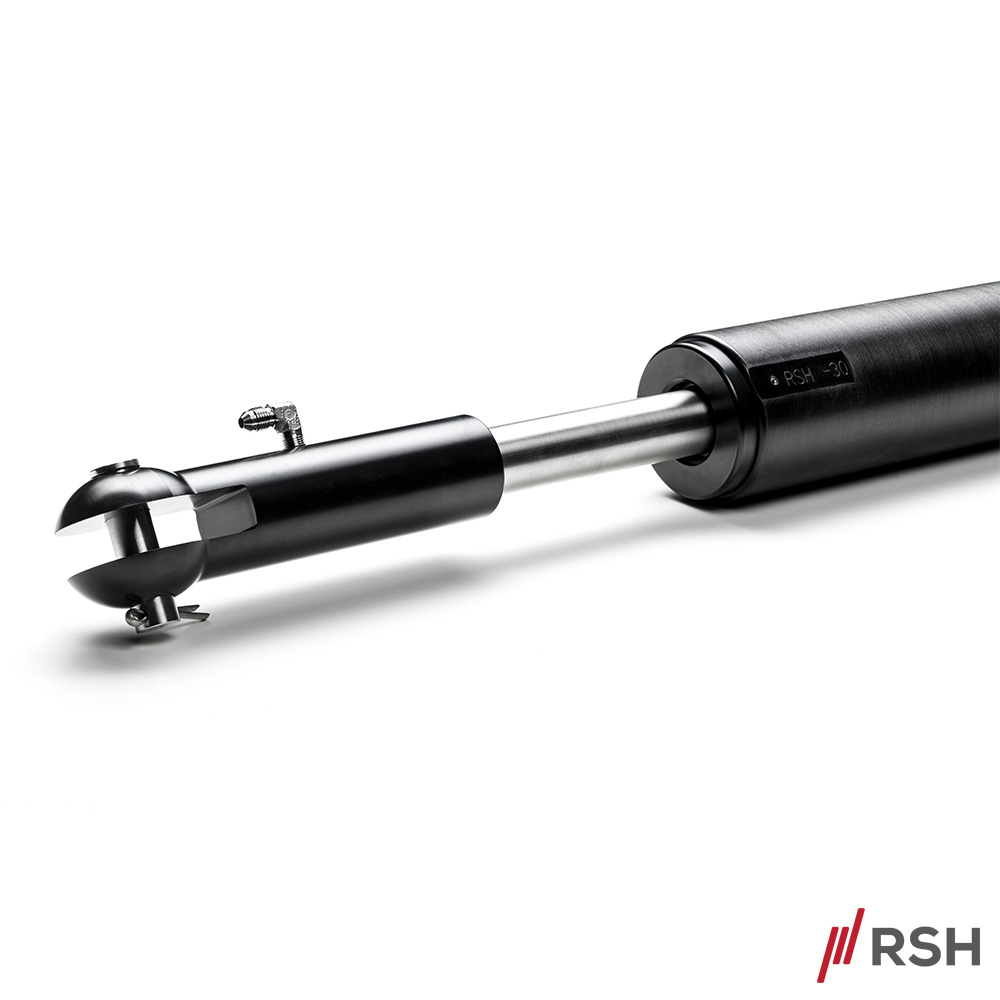

E850 Vang
RSH hydraulic vang guarantees maximum traction power combined with the powerful pushing force as well as the comfort to trim directly from the cockpit.
It allows the meticulous control of the leech tension sailing in strong wind as in light airs supporting the weight of the boom. When the sail is flaked it acts as topping lift.
The construction of the RSH E850 vangs provides a pressurization with high pressure inert gas making them among the lightest and best performing on the market
On request they can be supplied in a hydraulic Push-Pull configuration.
Data sheet
Tecnical Data

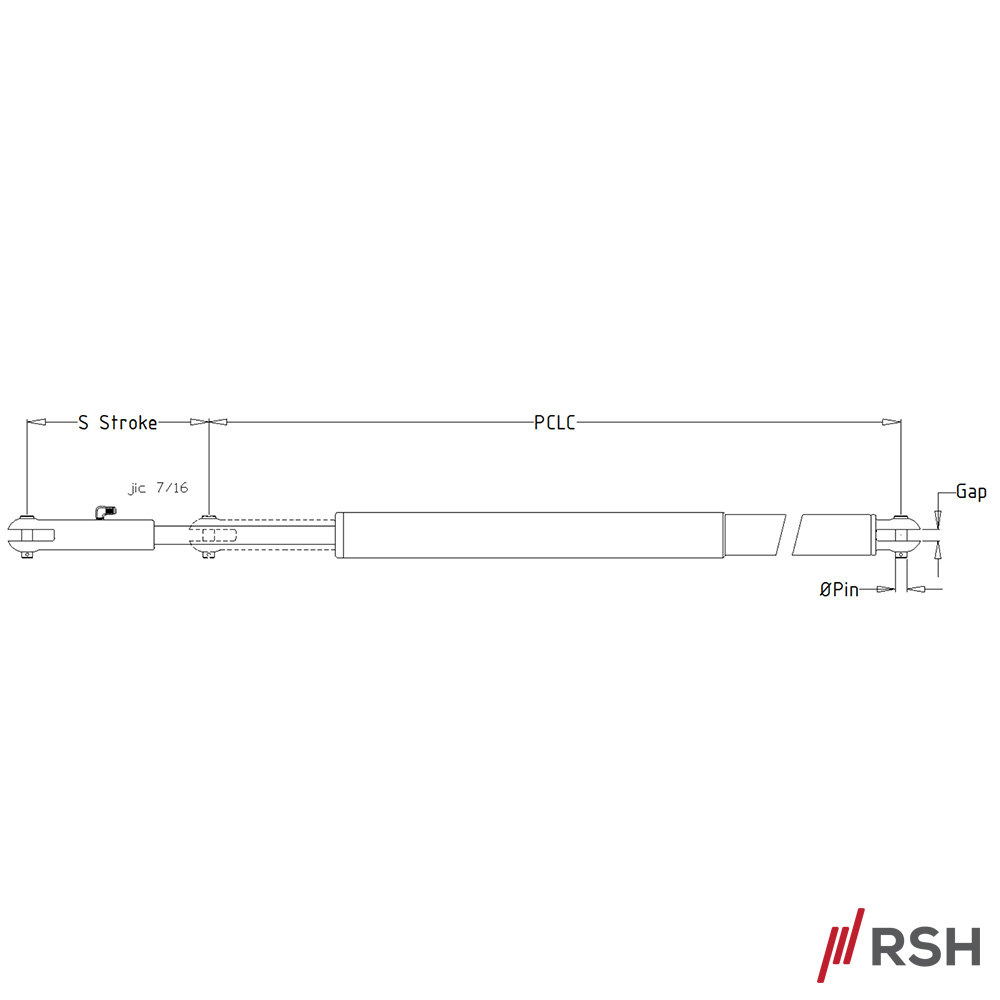

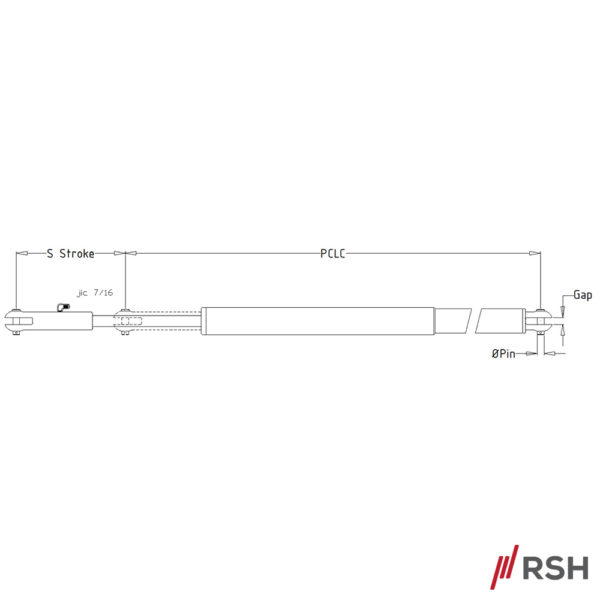

| Ref. | Description | Max pull force @ 5000PSI | Return force @ 600 PSI (kg) | Gap / Pin (in) | Stroke (mm) | PCLC (mm) |
|---|---|---|---|---|---|---|
| E850-VC-017 | -17 Vang – gas return | 3180 | 680 | 5/8 | 241 | Custom |
| E850-VC-022 | -22 Vang – gas return | 4660 | 880 | 5/8 | 254 | Custom |
| E850-VC-030 | -30 Vang – gas return | 7210 | 1370 | 3/4 | 280 | Custom |
| E850-VC-040 | -40 Vang – gas return | 11640 | 1960 | 7/8 | 305 | Custom |
| E850-VC-060 | -60 Vang – gas return | 15570 | 2670 | 1 | 357 | Custom |
| E850-VC-090 | -90 Vang – gas return | 19210 | 3470 | 1 1/4 | 406 | Custom |
Swipe on table to view every columns
